Stereo Music Audio Kit FM, USB, AUX, SD Card, MP3 Decoder Module, Dancing Display With Fully Remote Control - VTF-108

0 Reviews | 0 answered questios ID: 9948

Price: ₹255 ₹ 499.00 48% Off

100% Brand New, High Quality & Great Finishing.

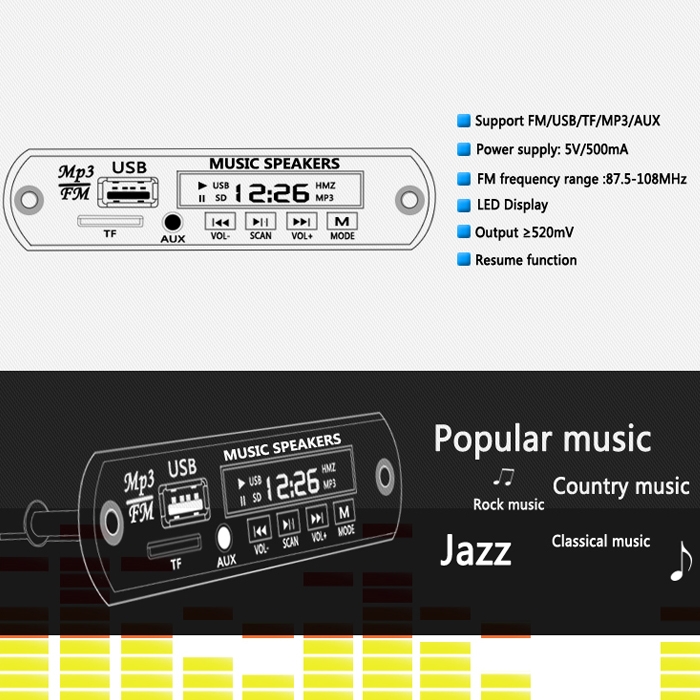

FM USB MP3 Audio Board with LCD Display
Support FM /USB /MP3/AUX/SD
Frequency 87.5-108MHZ
Read More...

Quantity:

Total Price: ₹255

Min Order Limit: 1

SKU:

TRPMART MP3 Decoder Module

Category:

Tags:

Description Specification Additional Information Reviews Wholesale Enquiry Customers Q&As

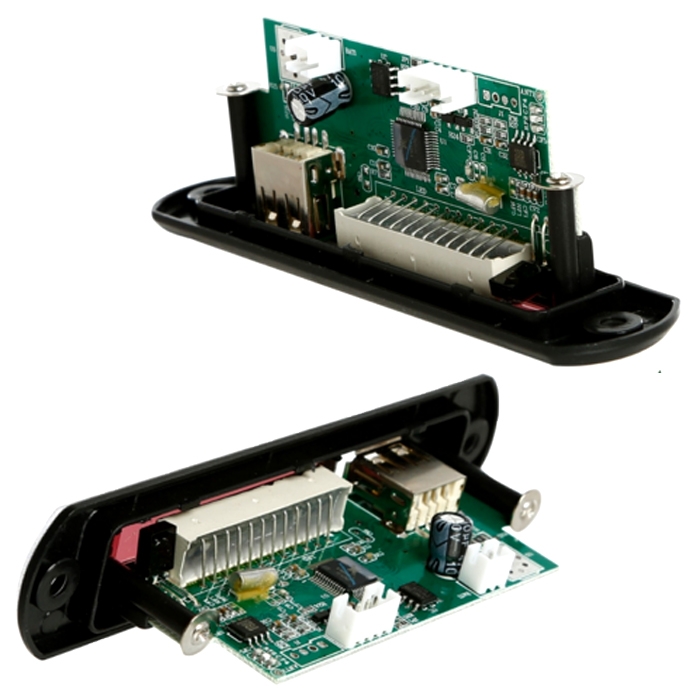

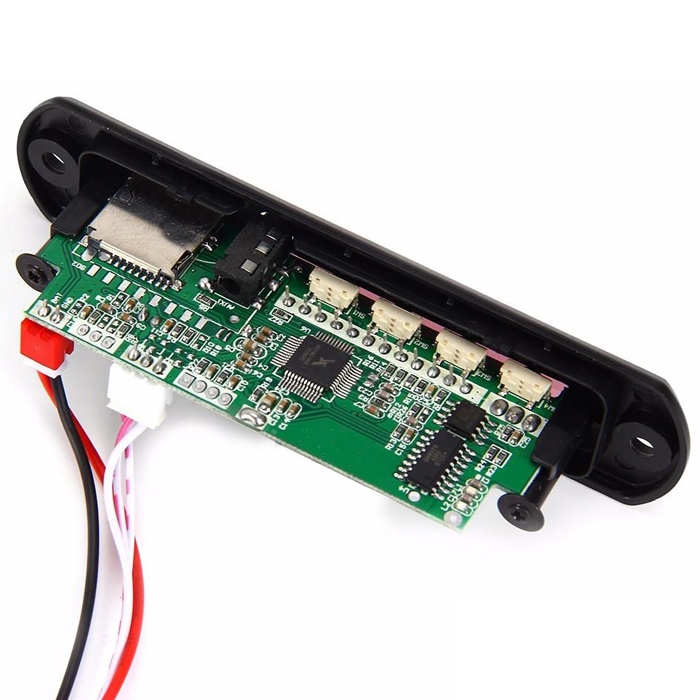

The VTF-108 is a Great Circuit Board for Audio System with Wonderful Sound Quality. It Need to be Connected With Amplifier Board, Then Able to Drive Speakers. It Play Music Via USB Flash Disk or SD Card as You Wish. FM/USB/SD/Line in Different Modes Can be Switched by Remote Control or Button. You Can DIY Your Own Music Audio System Right Now.

Features:

Resume Function
Song Number Display
Song Selection Mode
Forward and Backward Selection
With IR Remote Control
With the LINE input (AUX)
With Led Display
External Antenna Connection for FM

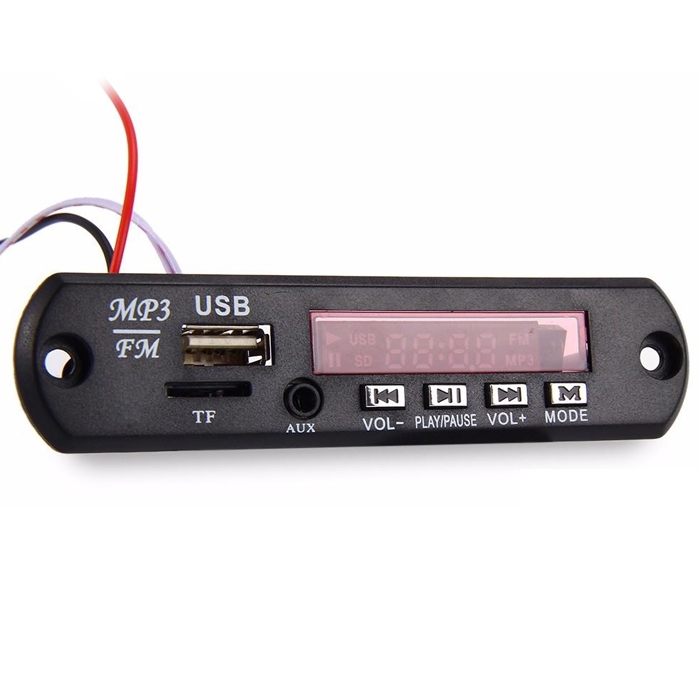

LCD Screen Displays Audio File Information & Frequency
Digital Volume Level Display
Volume Up /Down Buttons

Function Information:

Resume Function: YES
With 1.888 Display
Support: 32-320kbps MP3 Songs
Support: FAT32, FAT16 File System
Support : FM/USB/SD/MP3/AUX
FM Function: 87.5~108MHZ (Frequency Range)

Please Note:

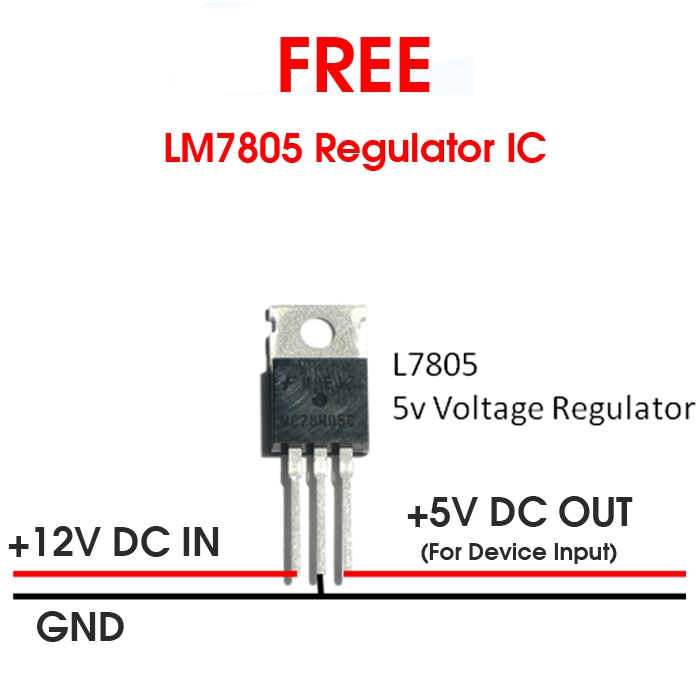

If You Want Use This Unit With 12V DC Power Source Then You Should Need “LM7805 Regulator IC” (Free With this Unit) to Convert 12V DC to 5V DC Power. See 5th Image for Connection.
This is Only a Embedded FM USB MP3 Audio Board Module & You Should Need a Amplifier to Connect the Speakers (For Sound Output).
You Have to Add Extra Copper Wire In Antina Wire to Improve Your FM Signal Strength.
Read all Description & Fitment Before Ordering the Product.
Check the Fitment Model & Compare the Pictures Before Your Purchase, Thanks!
Installation Instructions Not Included, Tool Not Included.
Professionals Installation is Strongly Recommended to Avoid Trouble Caused By Inexperienced Installer!
Product Color/ Texture May Slightly Vary Due to Photographic Lighting Sources or Your Monitor/ Mobile Settings.

Package Include:

1 x Embedded FM USB MP3 Audio Board with LCD Display

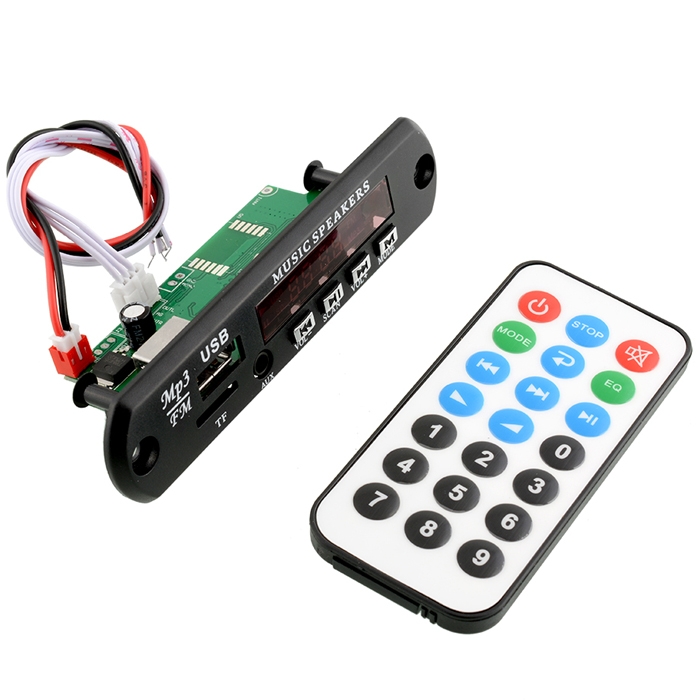

1 x Remote Control
2 x Connection Wire Clip
1 x Free LM7805 Regulator IC (Convert 12V DC to 5V DC)

Brand	TRPMART
Product Color:	As Shown In Image
Compatible With:	Home, School, Shop, Office, Hotel, Factory & Industrial Use
Product Material:	ABS Plastic, Electronic Parts, PCB Board Circuit with Microcontroller Chip
Operating Voltage:	5 Volt DC Power
Pack of:	1 PCS
Product Feature:	Portable, Manual Controller, IR Remote Controller
Warranty Summary:	10 Days Replacement (Manufacturing Defects Only)
Warranty Conditions:	Used / Burnt / Cut / Damaged / Tampered Goods Not Covered
Country of Origin:	Imported Item (China)
Weight	80 Gram
HSN	8519
Dimensions	11.5 X 4.5 X 3 cm

Technical Standard:

Model No.: VTF-108
S/N: 65dB
Distortion: 0.2%
Output: 550MV
Separation: 45dB
Input Supply: 5V/2A (If you want use this unit with 12V DC power supply then you should need "LM7805 Regulator IC" to convert 12V DC to 5V DC power)
Length: 41mm
Width: 32mm
Auto-Search Station: 22-28dB
Frequency Response: (90HZ~15KHZ)
