RC3563 IR Tester 200Ω 100V Handheld Portable Battery Tester, High Precision Battery Internal Resistance Tester for NMC, LFP, LiFepo4, 18650, Lithium Battery - Good Accuracy Battery IR Tester

0 Reviews | 0 answered questios ID: 21809

Price: ₹3999 ₹ 9999.00 60% Off

Wide Resistance Range: Up to 200 Ω allows testing small cells through large battery packs.
High Voltage Compatibility: Measures battery packs up to 100 V, making it suitable for multi-cell assemblies.
Portable, handheld design: Convenient field use, on-site battery inspection or maintenance.
Designed for lithium battery chemistries: Works with NMC, LFP, LiFePO₄, 18650 and wider lithium-ion formats.
High-accuracy IR measurement: Ensures you can assess internal resistance reliably, which is key to battery health and performance.
Quick measurement: Efficient for batch testing or quality-control workflows.
Improved battery health diagnostics: Internal resistance is a strong indicator of battery condition, age and usability.
Read More...

Quantity:

Total Price: ₹3999

Min Order Limit: 1

SKU:

TRPMART Battery IR Tester RC-3563 200Ω 100V Handheld Portable Battery Tester

Category:

Tags:

Voltage Tester,

Description Specification Additional Information Reviews Wholesale Enquiry Customers Q&As

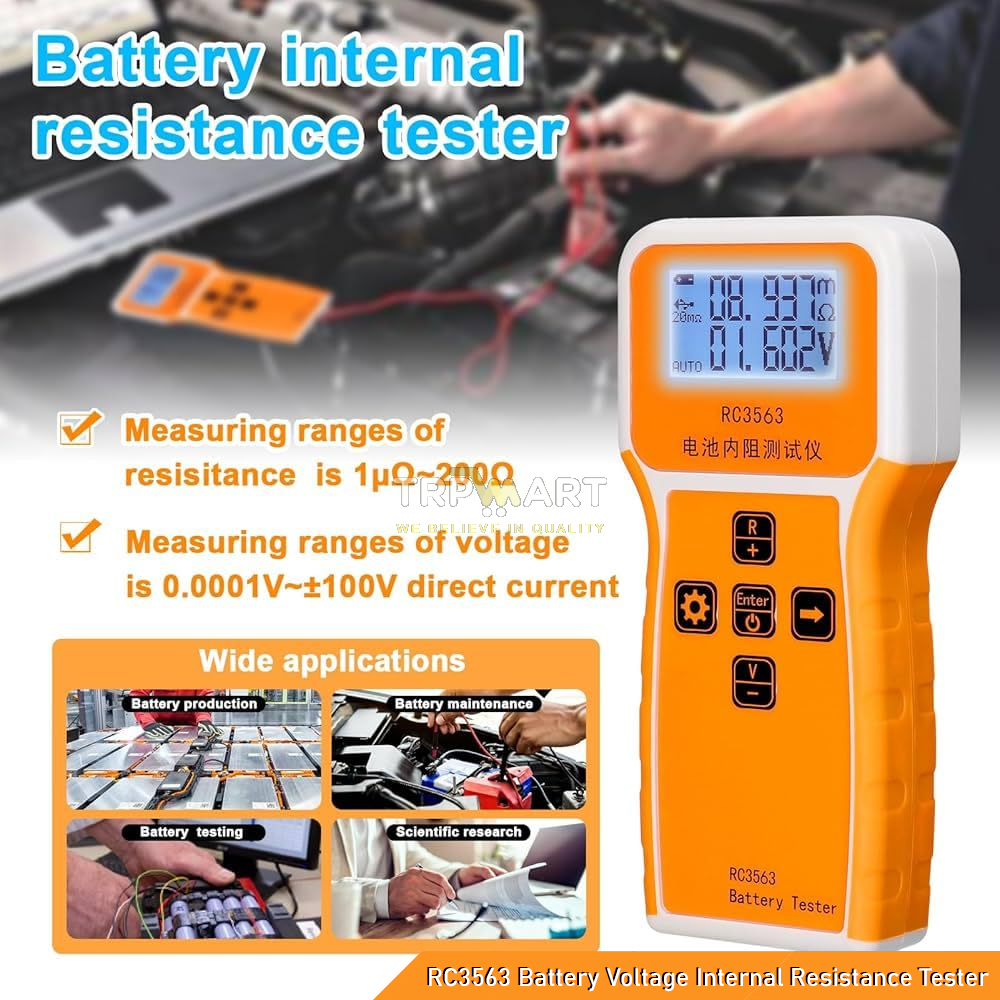

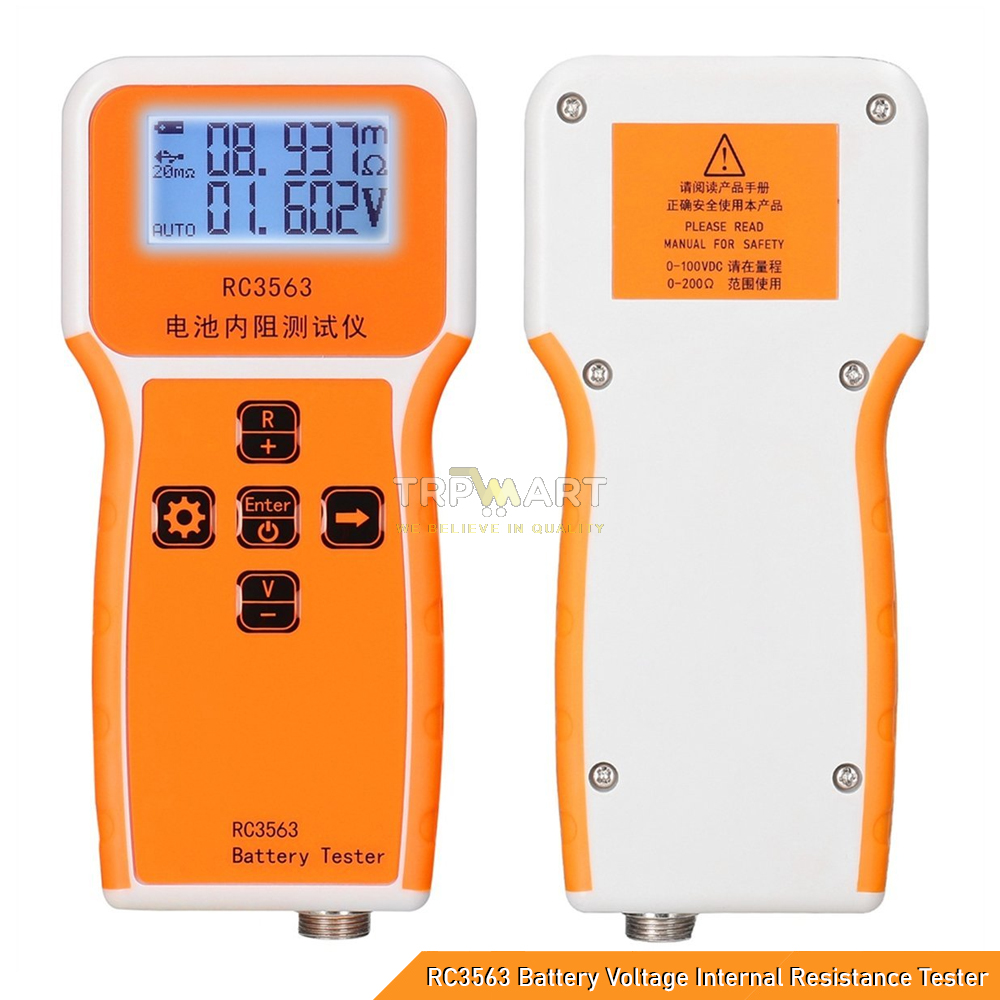

The RC3563 IR Tester is a high-precision, handheld portable instrument designed to measure the internal resistance (IR) of lithium battery cells and packs - including NMC, LFP, LiFePO4, and 18650 formats — with a full range up to 200 Ω and voltage compatibility up to 100 V. Ideal for battery pack manufacturing, ageing assessment, maintenance and quality-control inspection.

Features:

The RC3563 IR Tester is engineered for professionals and technicians who require a reliable, high-precision tool for assessing the internal resistance of individual battery cells and battery packs.
Internal resistance (IR) is a critical parameter in evaluating battery health, performance and safety: a higher than expected IR often signals age, deterioration, or impending failure.
Broad measurement span - With capability up to 200 Ω and up to 100 V input, this tester is highly versatile - from single cylindrical cells (e.g., 18650) to multi-cell lithium battery packs.
Accurate IR measurement - Using reliable measurement methodologies, the RC3563 ensures accurate readings so you can monitor trends and detect weak or failing cells before they compromise your system. Battery-internal-resistance measurement is recognized as a fast, reliable means of assessing battery condition.
Portable & practical - The handheld design allows field technicians, service engineers or pack manufacturers to carry out inspections on-site, reducing downtime and enabling proactive maintenance.
Lithium-battery support - Specifically suitable for cell chemistries like NMC, LFP, LiFePO₄, including popular cell formats like 18650, this tester aligns with modern battery technologies.
Health diagnostics & QC - Because IR increases with age, usage and internal damage, regularly measuring IR helps you monitor battery pack health, detect abnormal degradation, and validate pack performance during production or servicing.
Superior safety & performance assurance - By identifying cells or packs with elevated internal resistance - which can cause increased heat, voltage drop and reduced current delivery - you help ensure safe and reliable battery operation.
Time-efficient workflow - Rapid measurement allows you to test multiple cells/packs in sequence, ideal for production lines, battery reuse assessment, or maintenance rounds.

Typical Applications:

Quality control in lithium-battery manufacturing (cells & packs).
Maintenance and health assessment of battery packs in energy-storage, EV, e-mobility & power-backup applications.
Reuse or second-life battery inspection to identify candidates for repurposing.
Hobbyist or professional battery testing for 18650, pouch, prismatic, or module formats.
R&D labs or service centres needing accurate IR data for cells/packs.

Why Internal Resistance Matters:

Internal resistance is not just a number - it reflects how well a battery can deliver current effectively, handle load changes and sustain performance. As explained by battery-testing specialists, a rising internal resistance means more voltage drop under load, less usable capacity, more heat generation and earlier cut-off in use.
With the RC3563 tester, you gain the ability to catch these changes early, track their trend over time and make informed decisions on maintenance, replacement or repurposing.

Please Note:

Read All Description & Fitment Before Ordering the Product.
If you need a robust, handheld solution for measuring battery internal resistance across a wide range of voltages and battery chemistries, the RC3563 IR Tester offers the accuracy, versatility and convenience necessary for professional battery condition-assessment and quality-control workflows. Empower your battery testing regime with one instrument that covers cells, modules and packs with confidence.
Installation Instructions Not Included, Tool Not Included.
Professionals Installation is Strongly Recommended to Avoid Trouble Caused By Inexperienced Installer!
Product Color/ Texture May Slightly Vary Due to Photographic Lighting Sources or Your Monitor/ Mobile Settings.

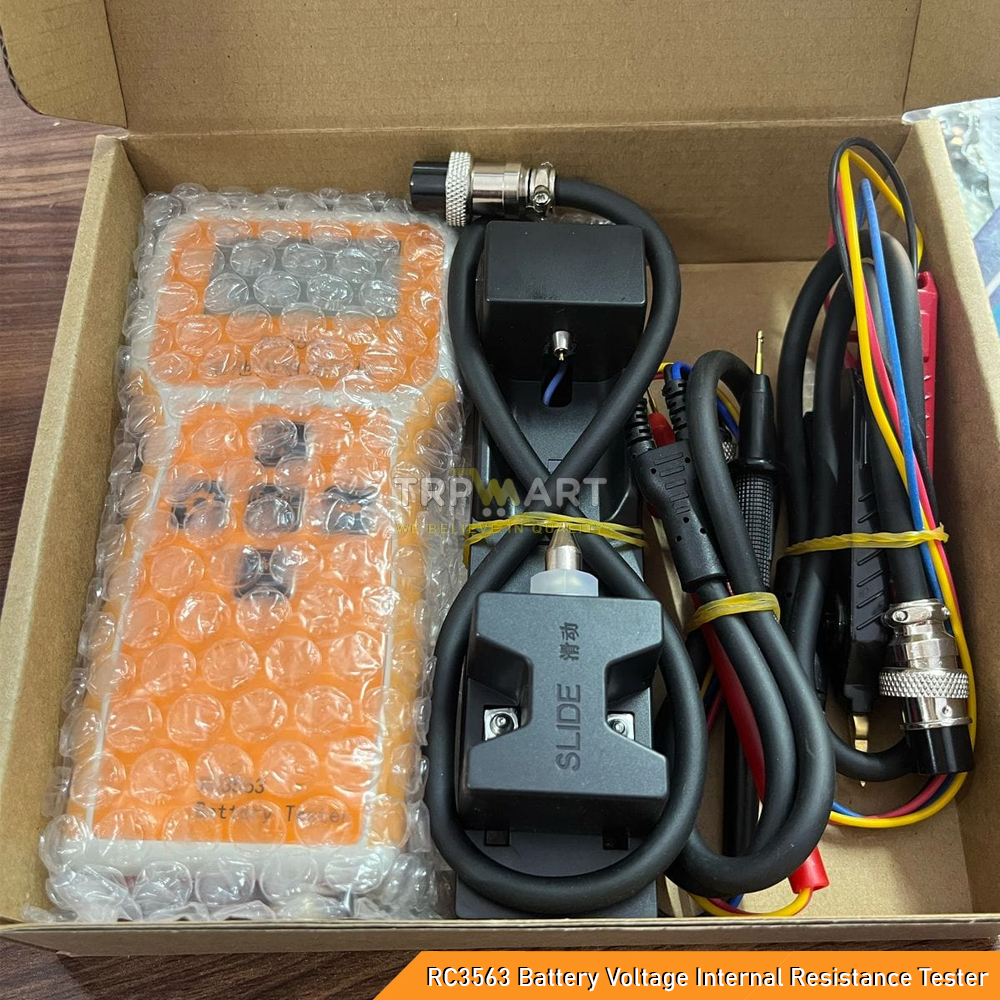

Package Include:

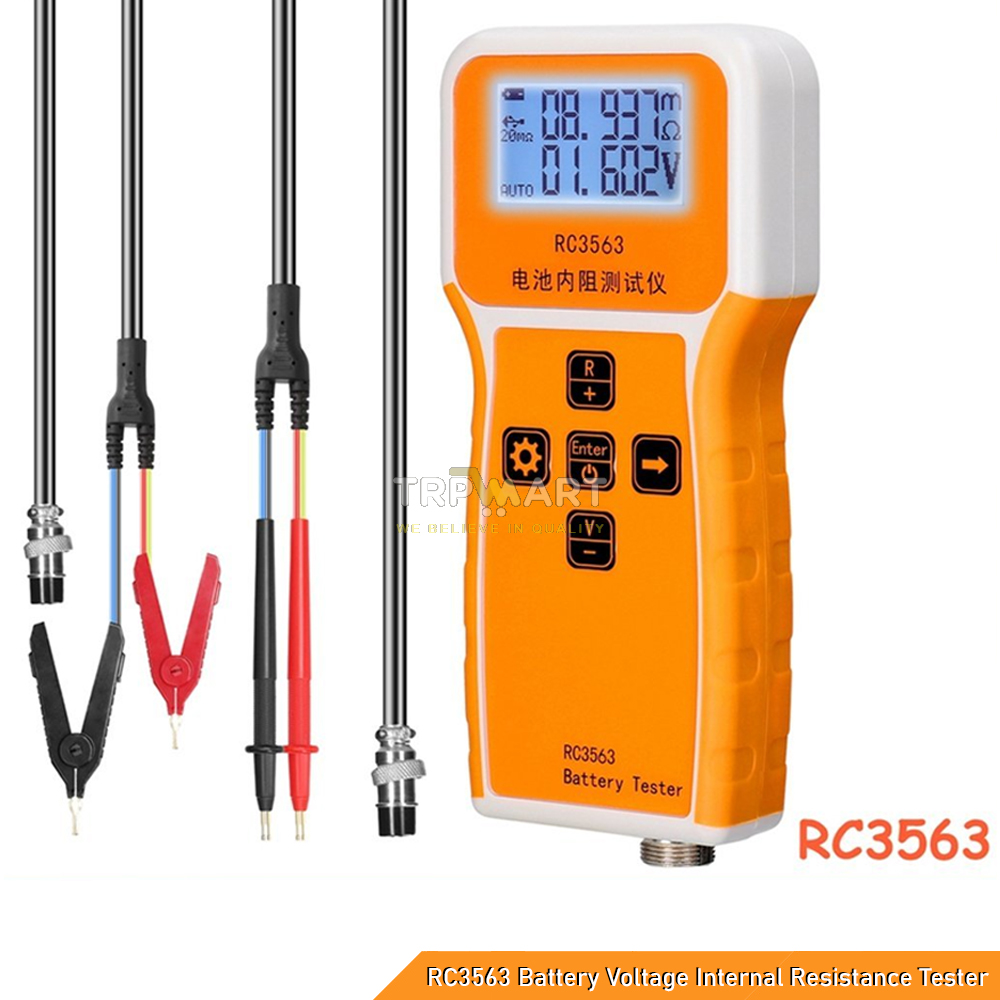

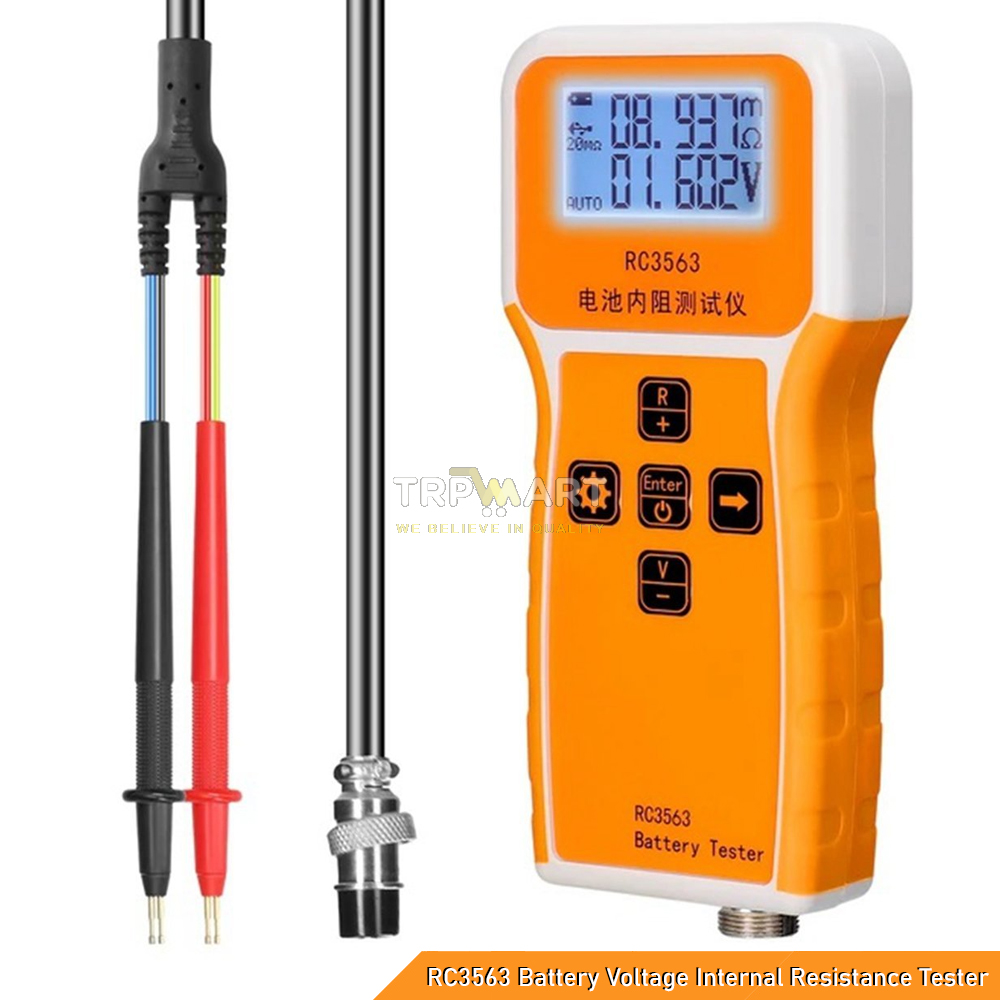

1 x RC3563 Battery Voltage Internal Resistance Tester

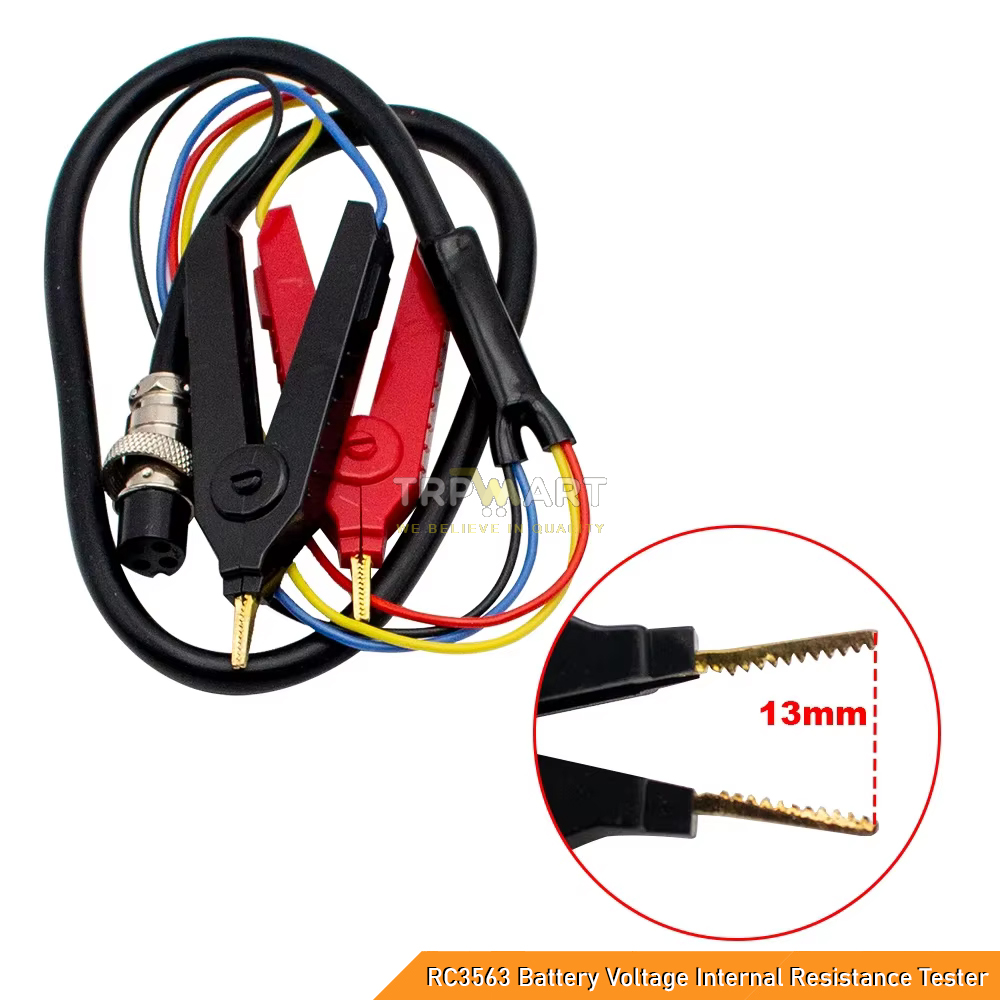

3 x Probe

Brand	TRPMART
Product Color:	As Shown In Image
Compatible With:	Home, School, Shop, Office, Hotel, Factory & Industrial Use
Product Material:	High Quality Plastics, Electronic Parts, PCB Board Circuit with Microcontroller Chip
Operating Voltage:	5 Volt DC Power
Pack of:	1 PCS
Product Feature:	Portable, Handheld, Rechargeable
Warranty Summary:	10 Days Replacement (Manufacturing Defects Only)
Warranty Conditions:	Used / Burnt / Cut / Damaged / Tampered Goods Not Covered
Country of Origin:	Imported Item (China)
Covered in Warranty:	Yes, Replacement Only. No Returns
Warranty Service Type:	Send/ Return to Seller by Courier.
Weight	50 Gram
HSN	90303390
Dimensions	17 X 8 X 6 cm

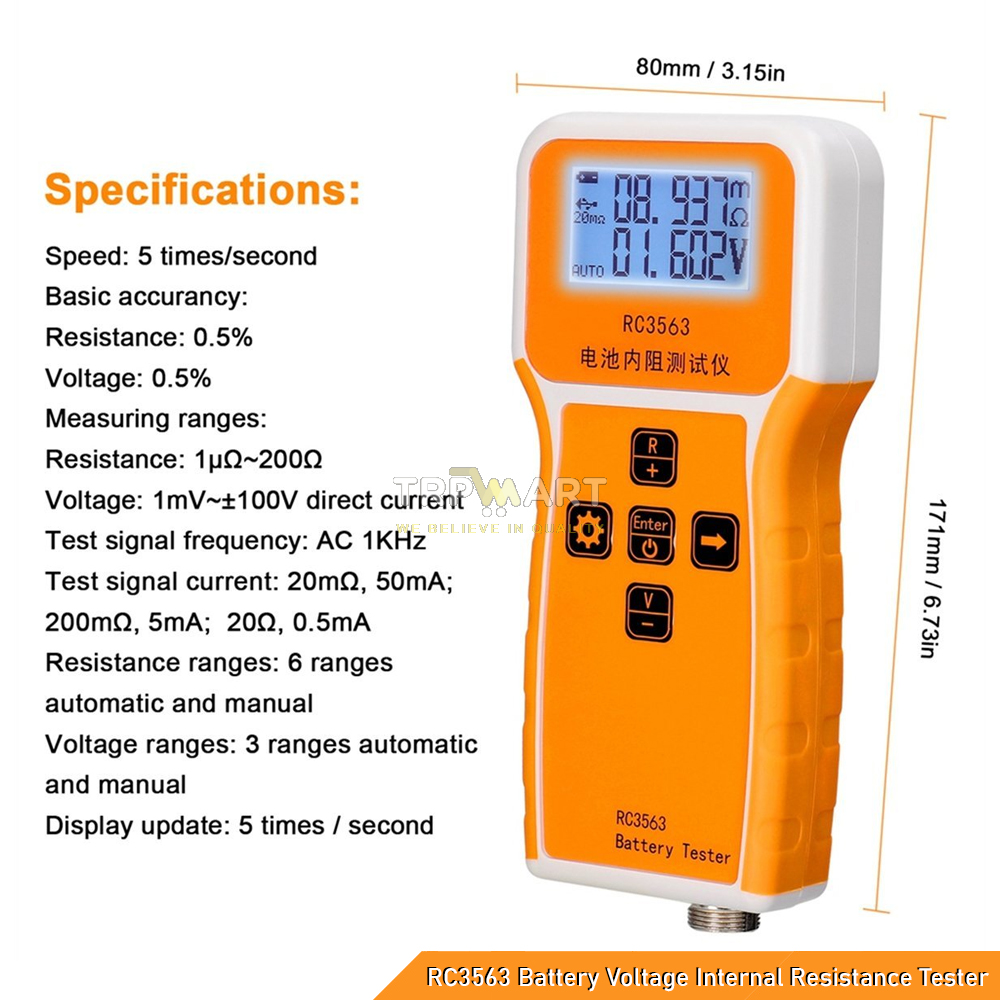

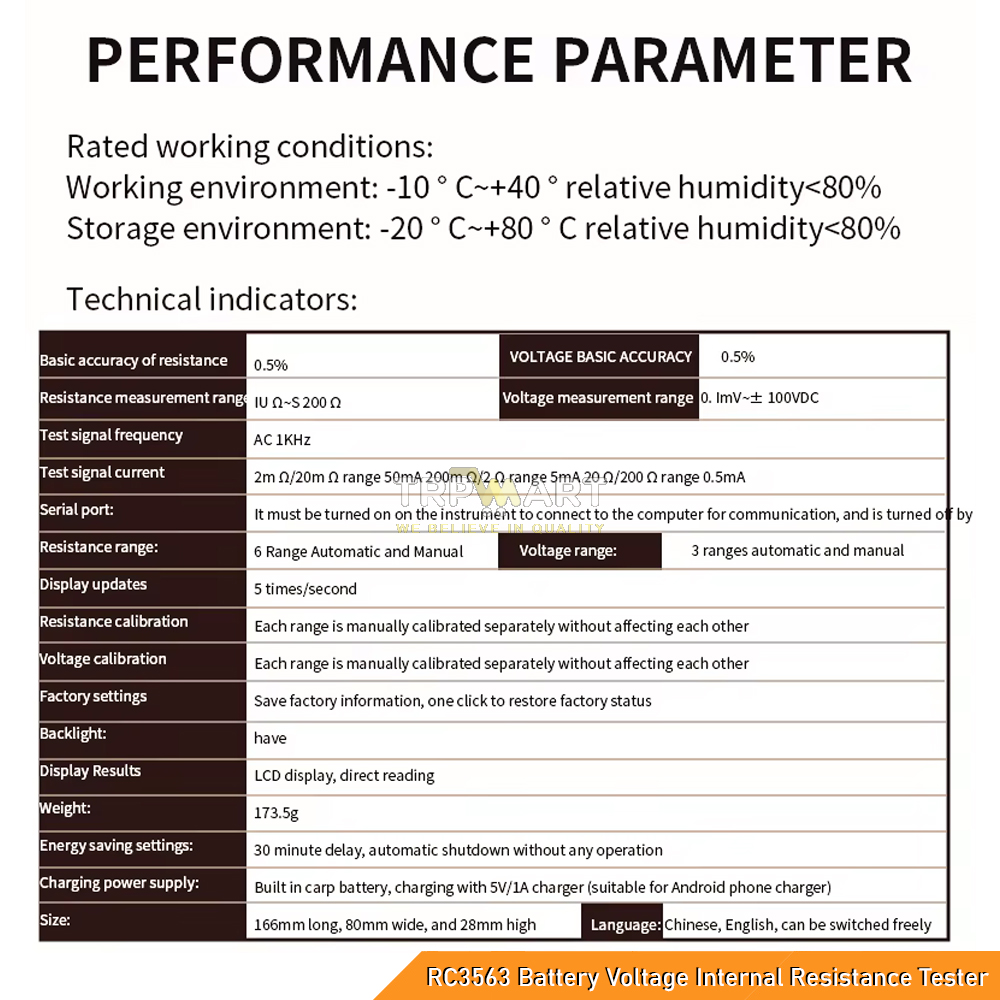

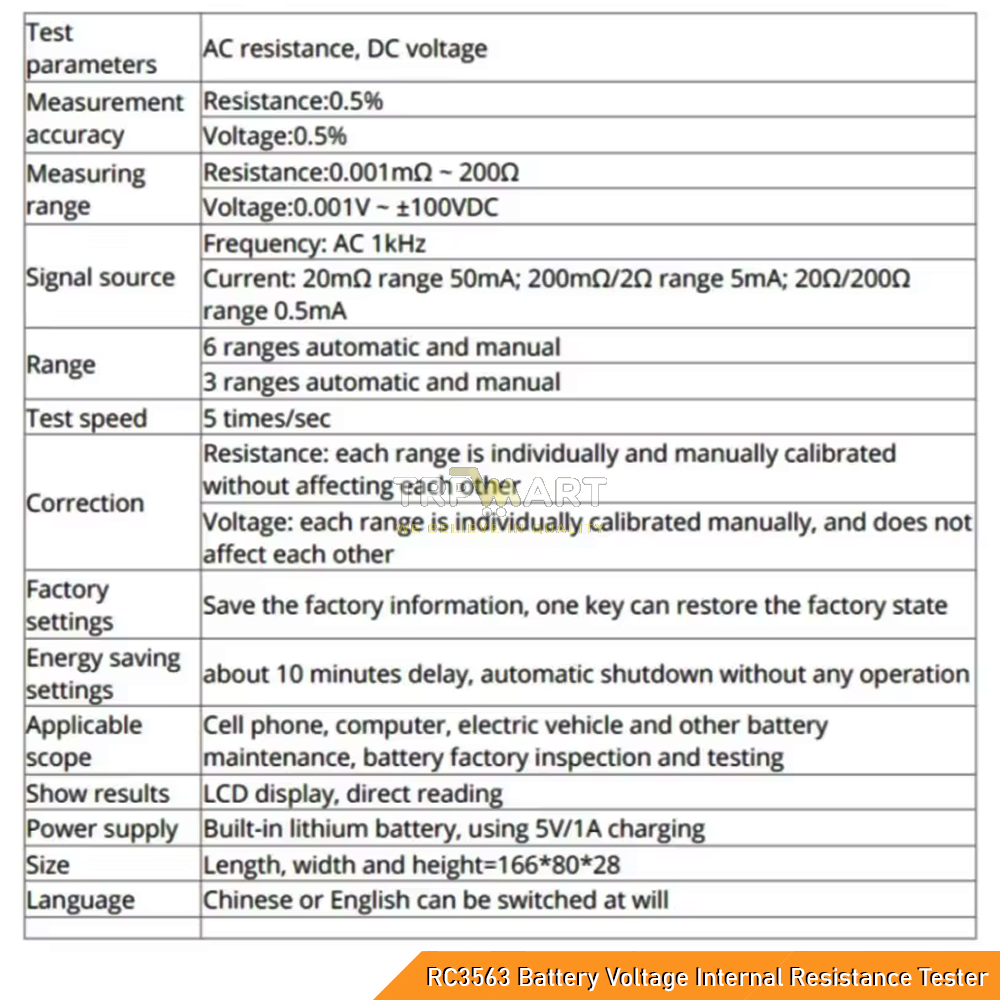

Technical Standard:

Type: Internal Resistance Tester (IR Tester)
Model No.: RC3563
Charging Voltage: 5V DC Power
Built-in: 1000mAh Lithium Battery
Rechargeable: Yes
Parameters: AC resistance, DC voltage
Accuracy: R: 0.5% V: 0.5%
Measurement Range: R: 0.0001mΩ ~ 200Ω V: 0.0001 V ~ ±100VDCV
Signal Source: AC: 1kHz At 20mΩ range: 50mA At 200mΩ / 2Ω range: 5mA At 20Ω / 200Ω range: 0.5mA
Voltage ranges: 3 ranges automatic and manual
Range: R: Automatic and Manual. 5 ranges, V: Automatic and Manual, 3 ranges
Display update: 5 times / second
Auto shutdown: 10 minutes delay, automatic shutdown without any operation
Adjustment: Correction for resistance and voltage separately
Factory Setting: Save factory information, restore factory state with one key
Backlight: Can turn it on/off by entering setting menu
Application: Battery maintenance for mobile, computer, battery car; battery factories check and test
Result Display: LCD display, direct reading

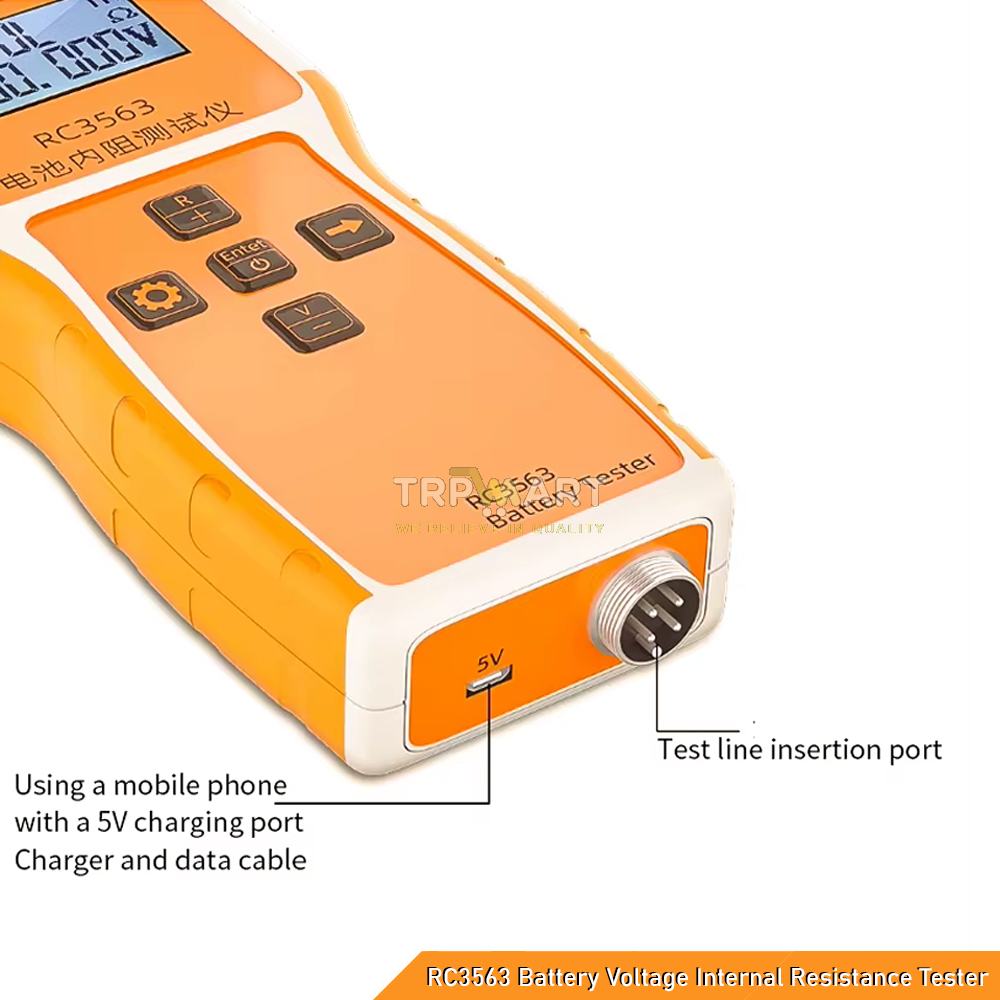

Power Supply: Built-in lithium battery, Be suitable to use 5V 1A Android mobile phone charger
Size: 166mm (Length) * 80mm (Width) * 28mm (Height)
Weight: 173.5g
Language: English and Chinese switchable
